5000 Series Grade Aluminum Sheet 6061-T651 5052 5083 5754 7075 with PVC Film Protection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | BYAl-001AS | Surface Treatment | Oxidized |
|---|---|---|---|
| Alloy | Alloy | Material | 1000 Series, 2000 Series, 3000 Series Etc |
| Service | Bending, Decoiling, Welding, Punching, Cutting | Key Word | Aluminum Sheet |
| Length | 1-12m Or As Required | Hardness | 60-150 |
| Ts (MPa) | 175-572 | Ys (MPa) | 195-503 |
| Elongation | 10-20 | Transport Package | Standard Export Packing |
| Specification | Customized | Trademark | Bangying |
| Origin | China | Supply Ability | 100000 |
| Color | Silver | Application | Transportation Tools, Door & Window, Glass Wall, Heat Sink, Decorations |
| Certification | ISO9001 | Technique | Cold Drawn |
| Grade | 5000 Series | Temper | T3 - T8 |
| Samples | US$ 1/kg 1 Kg(Min.Order) | Request Sample | Customization | Available | Customized Request |
| Highlight | bending 1100 aluminum sheet,cutting 1100 aluminum sheet,bending aluminium steel plate/sheet |
||
Product Description

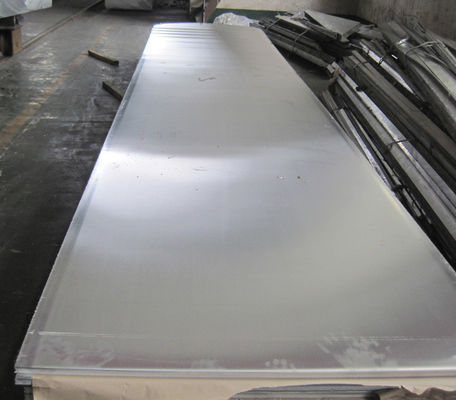

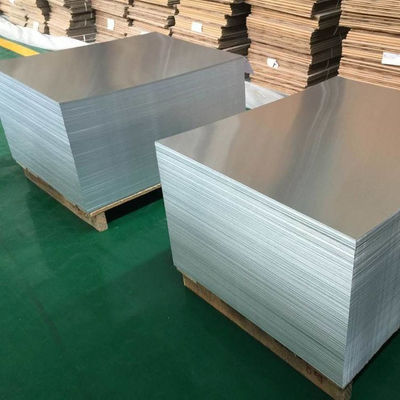

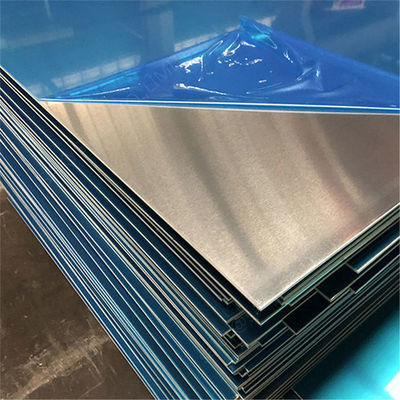

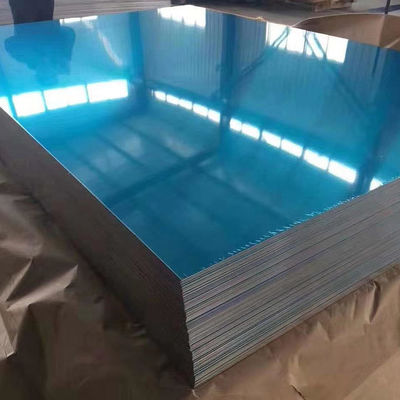

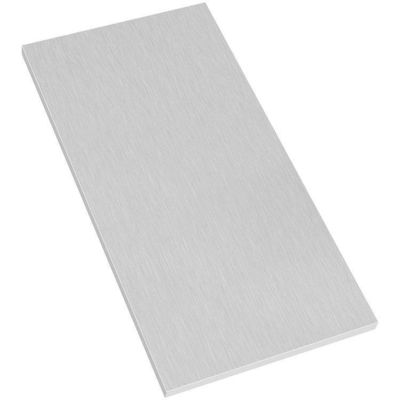

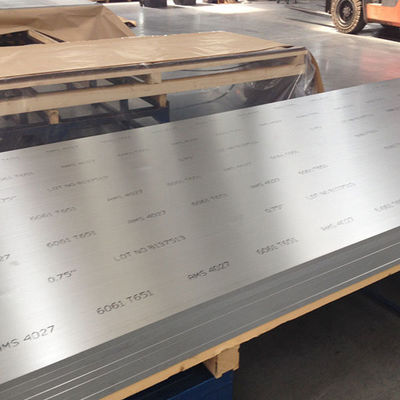

PVC Film Protected Plate 6061-T651 5052 5083 5754 7075 Aluminum Sheet
Aluminum alloy is the most widely used non-ferrous metal structural material in industry.
It has been widely used in aviation, aerospace, automobile, machinery manufacturing, shipbuilding and chemical industry.
| Material Grade |
| |
| Standard | ASTM, AISI, JIS, DIN, GB, EN | |
| Aluminum Sheet Size | Width: 20mm-2650mm Thickness: 0.2mm-600mm Length: 1-12m, such as 2440mm 2500mm 3000mm or as required | |
| Surface | Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc | |
| Application | 1) building and construction 2) decoration 3) curtain wall 4) Shelter 5) oil tank 6) mould | |
| Trade Terms | EXW, FOB, CIF, CFR | |
| Payment Terms | 100%T/T, 30%TT advanced deposit payment and 70% balance payment before shipment loading the goods. Or other. | |
| Delivery Time | Usually, within 7-20 days after receiving deposit. |
| Typical Mechanical Properties | ||||
| Aluminum Grade & State | Tensile Strength (25°C MPa) | Yield Strength (25°C MPa) | Hardness 500kg/10mm | Elongation 1.6mm(1/16in) |
| 5052-H112 | 175 | 195 | 60 | 12 |
| 5083-H112 | 180 | 211 | 65 | 14 |
| 6061-T651 | 310 | 276 | 95 | 12 |
| 7050-T7451 | 510 | 455 | 135 | 10 |
| 7075-T651 | 572 | 503 | 150 | 11 |
| 2024-T351 | 470 | 325 | 120 | 20 |
| Typical Physical Properties | |||||
| Aluminum Grade & State | Thermal expansion coefficient (20-100ºC)μm/m·k | Melting point range (ºC) | Conductivity 20ºC(68ºF)(%IACS) | Resistivity 20ºC(68ºF)Ωmm2/m | Density (20ºC)(g/cm3) |
| 2024-T351 | 23.2 | 500-635 | 30 | 0.058 | 2.82 |
| 5052-H112 | 23.8 | 607-650 | 35 | 0.050 | 2.72 |
| 5083-H112 | 23.4 | 570-640 | 29 | 0.059 | 2.72 |
| 6061-T651 | 23.6 | 580-650 | 43 | 0.040 | 2.73 |
| 7050-T7451 | 23.5 | 490-630 | 41 | 0.0415 | 2.82 |
| 7075-T651 | 23.6 | 475-635 | 33 | 0.0515 | 2.82 |
Packaging:
Excellent package: Anti-ater paper and plastic film+covered by iron sheet + strapped with min three strappingstrips+fixed on the iron or wooden pallets by strapping strips. lt can effectively protect products from corrosion andvarious climate changes during ocean transportation.
Shipping:
Generally, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have long-term cooperation with many ex-perienced shipping companies and will find the most suitable mode of transportation for you.
Bangying (Suzhou) Technology Co., Ltd. is located in Suzhou & Wuxi , the Metal/Steel Base of Yangtze River Delta Economic Circle. The company is a comprehensive metal enterprise, specializing in the materials of Steel, Copper & Aluminium, and the related Products. We enjoy a good renown in the steel markets. We have the first-class processing equipment, modern physical and chemical testing centers and the machines of "Cutting, Surface Grinding, Forming, Welding, Precision Sheet Metal" and the other supplementary equipment. We have been providing customers with safe, economical and reliable products and ODM/OEM services for more than 15 years.
We have always been adhering to the business philosophy of "integrity management, no deceit", providing clients with the high-quality at the most competitive prices, and achieving a win-win relationship of lasting cooperation. We sincerely welcome all customers and friends worldwide to inquire us without hesitation,and work together for the mutual-benefits.
We have always been adhering to the business philosophy of "integrity management, no deceit", providing clients with the high-quality at the most competitive prices, and achieving a win-win relationship of lasting cooperation. We sincerely welcome all customers and friends worldwide to inquire us without hesitation,and work together for the mutual-benefits.
OUR SERVICE:
1.Provide free sample.
2.We have full stock and can deliver within short time.
3.OEM and ODM order are accepted, Any kind of logo printing or design are available.
4.We offer you the different types of product.
5.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
6.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
Q1: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment or based on BL copy or LC at sight.
Q2: Do you provide ODM services?
A: Yes, if you have your own design, we can produce according to your specification and drawing.
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q4: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q5: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
